Ford F-150 (2021–present) dimensions

Generation P702 · current

19′ 4″ (232.0″)589 cm long and 79.9″203 cm wide (SuperCrew · 5.5 ft bed). Comes in 7 body styles.

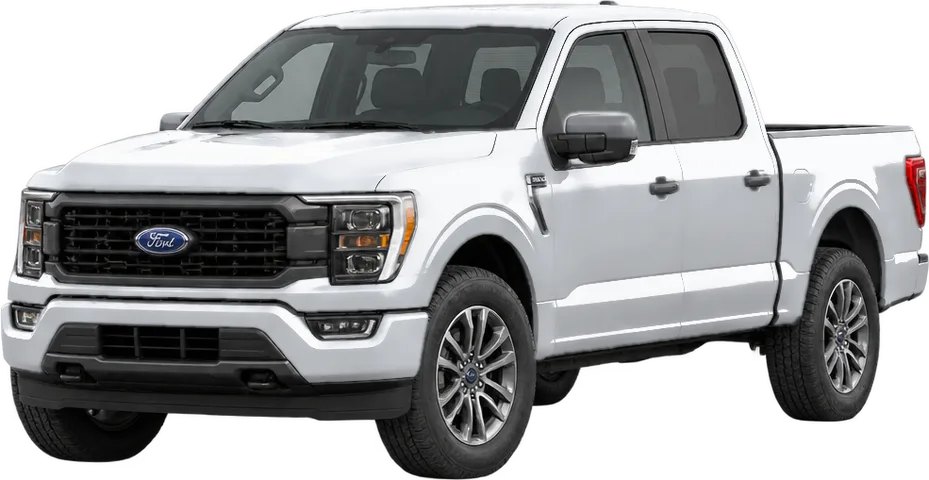

Ford F-150 2026 front three-quarter view

In a standard 2-car garage (20 ft6.1 m × 20 ft6.1 m)

Too long

4.0″10 cm longer than the garage

Uses the longest trim. Leave about 3 ft0.9 m to walk around the car.

Check your own garage

Fuel and efficiency

Powertrains: Gas, Flex-fuel, Hybrid, Diesel
Combined MPG: 12–25

Source: EPA fueleconomy.gov

Parking spaces

Standard (9 ft2.7 m × 18 ft5.5 m)Too long · −28.0″71 cm
Compact (8 ft2.4 m × 16 ft4.9 m)Too long · −52.0″132 cm
Parallel (8 ft2.4 m × 22 ft6.7 m)Very tight · 20.0″51 cm

Typical US sizes; your city’s code may differ.

Ford F-150 SuperCrew · 5.5 ft bed

Length	232.0″589 cm(up to 244.0″620 cm)
Width	79.9″203 cm(up to 87.0″221 cm)
Height	77.1″196 cm(up to 80.6″205 cm)
Wheelbase	145.4″369 cm
Ground clearance	9.4″24 cm
Seats	5(up to 6)
Curb weight	5,096 lb2,312 kg(up to 5,863 lb2,659 kg)
Max towing	13,100 lb5,942 kg(up to 14,000 lb6,350 kg)
Max payload	2,135 lb968 kg(up to 2,206 lb1,001 kg)

Based on 104 trims, model years 2021–2027.

Ford F-150 SuperCrew · 6.5 ft bed

Length	243.5″618 cm(up to 243.9″620 cm)
Width	79.9″203 cm
Height	77.6″197 cm
Wheelbase	157.2″399 cm
Ground clearance	9.7″25 cm
Seats	5(up to 6)
Curb weight	5,014 lb2,274 kg(up to 5,143 lb2,333 kg)
Max towing	14,000 lb6,350 kg
Max payload	2,135 lb968 kg(up to 2,235 lb1,014 kg)

Based on 45 trims, model years 2021–2026.

Ford F-150 SuperCab · 6.5 ft bed

Length	232.0″589 cm
Width	79.9″203 cm
Height	77.1″196 cm
Wheelbase	145.4″369 cm
Ground clearance	9.8″25 cm
Seats	6
Curb weight	4,895 lb2,220 kg
Max towing	10,900 lb4,944 kg(up to 12,800 lb5,806 kg)
Max payload	1,905 lb864 kg

Based on 40 trims, model years 2021–2027.

Ford F-150 Regular Cab · 6.5 ft bed

Length	209.1″531 cm(up to 228.0″579 cm)
Width	79.9″203 cm
Height	77.0″196 cm
Wheelbase	122.8″312 cm
Ground clearance	9.4″24 cm
Seats	3
Curb weight	4,275 lb1,939 kg(up to 4,655 lb2,111 kg)
Max towing	9,600 lb4,354 kg
Max payload	1,985 lb900 kg

Based on 22 trims, model years 2021–2027.

Ford F-150 Regular Cab · 8 ft bed

Length	227.7″578 cm(up to 228.1″579 cm)
Width	79.9″203 cm
Height	77.0″196 cm
Wheelbase	141.5″359 cm
Ground clearance	9.4″24 cm
Seats	3
Curb weight	4,363 lb1,979 kg(up to 4,679 lb2,122 kg)
Max towing	13,300 lb6,033 kg
Max payload	1,975 lb896 kg

Based on 18 trims, model years 2021–2026.

Ford F-150 SuperCab · 8 ft bed

Length	250.3″636 cm
Width	79.9″203 cm
Height	77.1″196 cm
Wheelbase	164.1″417 cm
Ground clearance	8.7″22 cm
Seats	6
Curb weight	4,941 lb2,241 kg
Max towing	14,000 lb6,350 kg
Max payload	2,205 lb1,000 kg

Based on 16 trims, model years 2021–2023.

Ford F-150 Crew Cab

Length	232.0″589 cm
Width	80.0″203 cm
Height	77.0″196 cm
Wheelbase	145.0″368 cm
Ground clearance	9.0″23 cm
Seats	5

Based on 2 trims, model years 2027.

Quick answers

How long is the F-150?: 19′ 4″ (232.0″)589 cm, up to 244.0″620 cm for the longest trim.
Will the F-150 fit in a standard 2-car garage?: No. It's 4.0″10 cm longer than a 20 ft deep garage. Check your own garage.
Does it fit a standard parking space?: Not quite: it overhangs a 9 × 18 ft space by 28.0″71 cm.
Will it clear a 7 ft garage door?: Yes. At 80.6″205 cm tall it clears a 7 ft door by 3.4″9 cm (without a roof box).
How wide is it with mirrors?: About 96.0″244 cm: 87.0″221 cm body width plus an estimated 9.0″23 cm for the mirrors (manufacturers don't publish it).
How much does the F-150 cost?: The 2026 F-150 starts at $37,290 (MSRP, before destination and taxes). See all trims and prices below.
How far can the F-150 go on a full tank?: Gas: about 720 miles (36-gallon tank, 20 MPG combined); Hybrid: about 830 miles (36-gallon tank, 23 MPG combined). Highway driving goes further, city driving less.
How much can the F-150 tow?: Up to 13,500 lb when properly equipped (best version; most trims are rated lower). Towing capacity of every F-150 version and what it can tow.

2026 F-150 prices and engines

The 2026 F-150 starts at $37,290 (XL RWD) and goes up to $79,005 (Raptor). Properly equipped, it tows up to 13,500 lb.

Trim	Body	Engine	HP	Drive	Economy	Tows	MSRP
XL	Regular Cab · 8 ft bed	2.7L V6	325	RWD	21 MPG	11,000 lb	$37,290
XL	Regular Cab · 6.5 ft bed	5.0L V8	400	RWD	19 MPG	9,000 lb	$39,330
XL	SuperCab · 6.5 ft bed	2.7L V6	325	RWD	21 MPG	10,900 lb	$41,600
XL	Regular Cab · 8 ft bed	2.7L V6	325	4WD	20 MPG	11,000 lb	$42,305
XL	SuperCrew · 5.5 ft bed	2.7L V6	325	RWD	21 MPG	12,800 lb	$43,935
XL	Regular Cab · 6.5 ft bed	5.0L V8	400	4WD	19 MPG	9,400 lb	$44,345
STX	SuperCab · 6.5 ft bed	2.7L V6	325	RWD	21 MPG	10,400 lb	$44,855
XL	SuperCab · 6.5 ft bed	2.7L V6	325	4WD	20 MPG	10,600 lb	$45,400
XLT	SuperCab · 6.5 ft bed	2.7L V6	325	RWD	21 MPG	10,900 lb	$45,695
STX	SuperCrew · 5.5 ft bed	2.7L V6	325	RWD	21 MPG	12,700 lb	$47,190
XL	SuperCrew · 5.5 ft bed	2.7L V6	325	4WD	20 MPG	13,100 lb	$47,820
XLT	SuperCrew · 5.5 ft bed	2.7L V6	325	RWD	21 MPG	12,800 lb	$48,055
STX	SuperCab · 6.5 ft bed	2.7L V6	325	4WD	20 MPG	10,400 lb	$48,655
XLT	SuperCab · 6.5 ft bed	2.7L V6	325	4WD	20 MPG	10,600 lb	$49,495
STX	SuperCrew · 5.5 ft bed	2.7L V6	325	4WD	20 MPG	12,900 lb	$51,070
XLT	SuperCrew · 5.5 ft bed	2.7L V6	325	4WD	20 MPG	13,100 lb	$51,915
XL Fleet	SuperCrew · 5.5 ft bed	3.5L V6 hybrid	420	4WD	23 MPG	13,100 lb	$52,575
XL Fleet	SuperCrew · 6.5 ft bed	3.5L V6 hybrid	420	4WD	23 MPG	11,000 lb	$53,570
XLT	SuperCrew · 6.5 ft bed	3.5L V6	400	4WD	19 MPG	13,500 lb	$54,555
Lariat	SuperCrew · 5.5 ft bed	3.5L V6	400	RWD	20 MPG	12,800 lb	$59,560
Lariat	SuperCrew · 5.5 ft bed	3.5L V6	400	4WD	19 MPG	13,100 lb	$63,360
Lariat	SuperCrew · 6.5 ft bed	3.5L V6	400	4WD	19 MPG	13,500 lb	$63,965
Tremor	SuperCrew · 5.5 ft bed	3.5L V6	400	4WD	18 MPG	10,200 lb	$64,915
King Ranch	SuperCrew · 5.5 ft bed	3.5L V6	400	RWD	20 MPG	12,800 lb	$65,825

Manufacturer's suggested retail prices for the 2026 model year, before destination fees, taxes and options. Showing the 24 cheapest of 30 configurations.
