Ford F-150 (2015–2020) dimensions

Generation P552

19′ 4″ (231.9″)589 cm long and 79.9″203 cm wide (SuperCrew · 5.5 ft bed). Comes in 8 body styles.

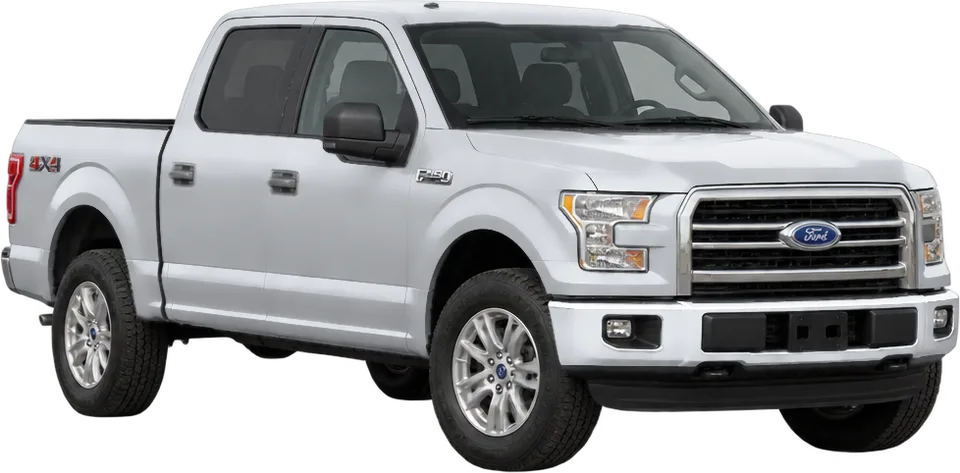

Ford F-150 2020 front three-quarter view

In a standard 2-car garage (20 ft6.1 m × 20 ft6.1 m)

Very tight

8.1″21 cm to spare lengthwise

Uses the longest trim. Leave about 3 ft0.9 m to walk around the car.

Check your own garage

Fuel and efficiency

Powertrains: Gas, Flex-fuel, Diesel
Combined MPG: 16–25

Source: EPA fueleconomy.gov

Parking spaces

Standard (9 ft2.7 m × 18 ft5.5 m)Too long · −15.9″40 cm
Compact (8 ft2.4 m × 16 ft4.9 m)Too long · −39.9″101 cm
Parallel (8 ft2.4 m × 22 ft6.7 m)Tight fit · 32.1″82 cm

Typical US sizes; your city’s code may differ.

Ford F-150 SuperCrew · 5.5 ft bed

Length	231.9″589 cm
Width	79.9″203 cm
Height	77.2″196 cm
Wheelbase	145.0″368 cm
Ground clearance	9.4″24 cm
Seats	6
Curb weight	4,867 lb2,208 kg(up to 4,917 lb2,230 kg)
Max towing	12,700 lb5,761 kg
Max payload	2,140 lb971 kg(up to 2,160 lb980 kg)

Based on 70 trims, model years 2015–2020.

Ford F-150 SuperCrew · 6.5 ft bed

Length	243.7″619 cm
Width	79.9″203 cm
Height	76.9″195 cm(up to 77.3″196 cm)
Wheelbase	156.8″398 cm
Ground clearance	9.3″24 cm
Seats	6
Curb weight	4,913 lb2,228 kg
Max towing	13,200 lb5,987 kg
Max payload	2,080 lb943 kg(up to 2,280 lb1,034 kg)

Based on 60 trims, model years 2015–2020.

Ford F-150 SuperCab · 6.5 ft bed

Length	231.9″589 cm
Width	79.9″203 cm
Height	77.2″196 cm
Wheelbase	145.0″368 cm
Ground clearance	9.4″24 cm
Seats	6
Curb weight	4,668 lb2,117 kg(up to 4,805 lb2,180 kg)
Max towing	12,000 lb5,443 kg
Max payload	1,840 lb835 kg(up to 1,860 lb844 kg)

Based on 36 trims, model years 2015–2020.

Ford F-150 SuperCab · 8 ft bed

Length	250.5″636 cm
Width	79.9″203 cm
Height	77.0″196 cm
Wheelbase	163.7″416 cm
Ground clearance	9.3″24 cm
Seats	6
Curb weight	4,929 lb2,236 kg
Max towing	11,600 lb5,262 kg(up to 11,900 lb5,398 kg)
Max payload	2,020 lb916 kg

Based on 36 trims, model years 2015–2020.

Ford F-150 Regular Cab · 6.5 ft bed

Length	209.3″532 cm
Width	79.9″203 cm
Height	76.9″195 cm
Wheelbase	122.4″311 cm
Ground clearance	9.4″24 cm
Seats	3
Curb weight	4,330 lb1,964 kg
Max towing	9,100 lb4,128 kg(up to 9,700 lb4,400 kg)
Max payload	1,990 lb903 kg

Based on 24 trims, model years 2015–2020.

Ford F-150 Regular Cab · 8 ft bed

Length	227.9″579 cm
Width	79.9″203 cm
Height	76.9″195 cm
Wheelbase	141.1″358 cm
Ground clearance	9.4″24 cm
Seats	3
Curb weight	4,418 lb2,004 kg
Max towing	12,000 lb5,443 kg(up to 12,200 lb5,534 kg)
Max payload	1,920 lb871 kg(up to 1,960 lb889 kg)
