Volvo XC60 (2018–present) dimensions

15′ 5″ (185.4″)471 cm long and 74.9″190 cm wide.

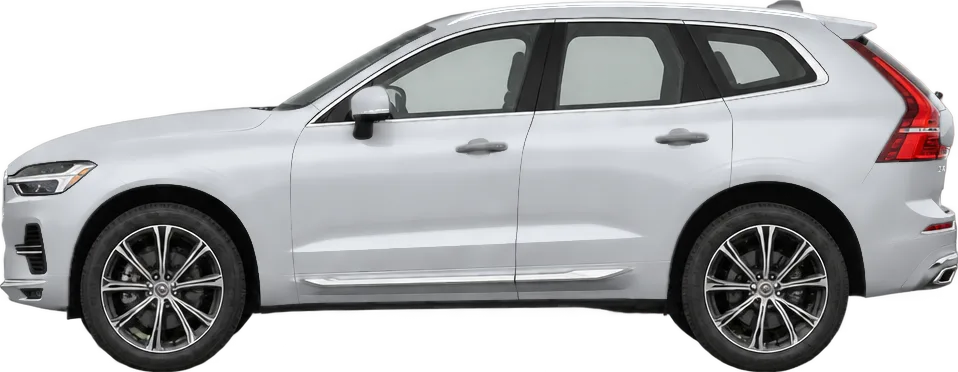

Volvo XC60 2026 side view

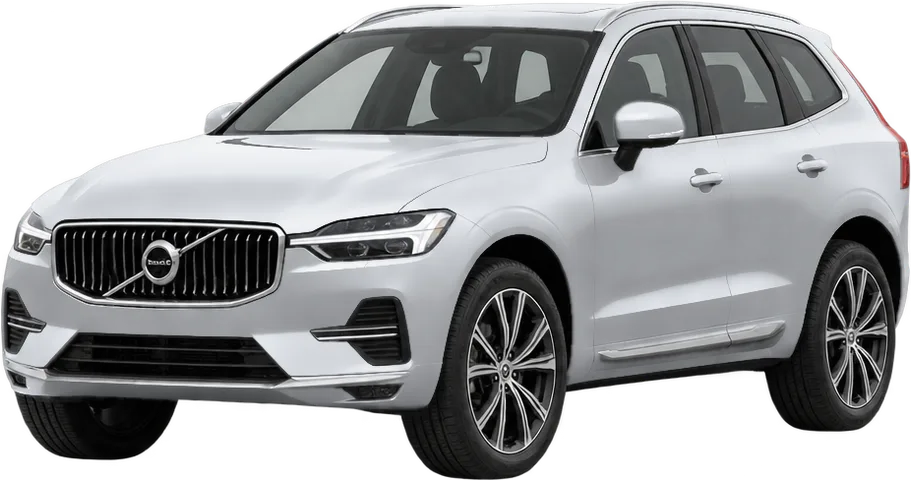

Volvo XC60 2026 front three-quarter view

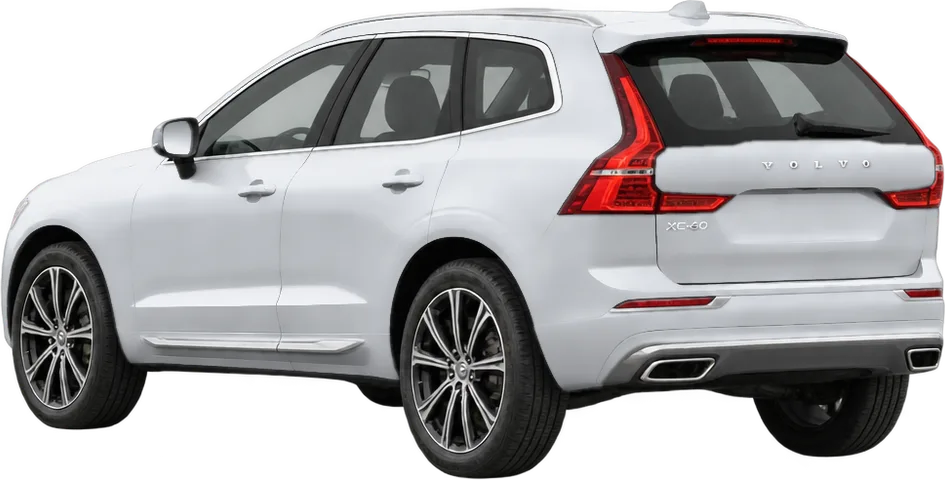

Volvo XC60 2026 rear three-quarter view

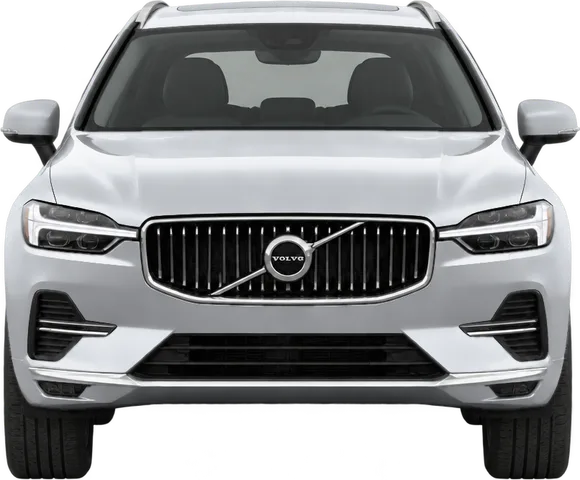

Volvo XC60 2026 front view

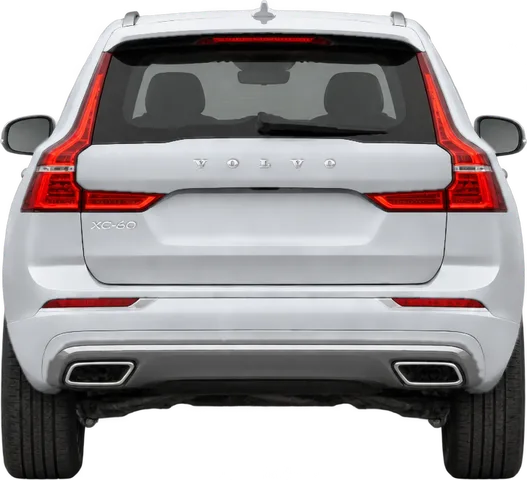

Volvo XC60 2026 rear view

In a standard 2-car garage (20 ft6.1 m × 20 ft6.1 m)

Yes, it fits

54.6″139 cm to spare lengthwise

Uses the longest trim. Leave about 3 ft0.9 m to walk around the car.

Check your own garage

Fuel and efficiency

Powertrains
Gas, Plug-in hybrid, Hybrid
Combined MPG
22–28
Trunk (EPA)
30.0 cu ft850 L

Source: EPA fueleconomy.gov

Parking spaces

  • Standard (9 ft2.7 m × 18 ft5.5 m)Yes, it fits · 30.6″78 cm
  • Compact (8 ft2.4 m × 16 ft4.9 m)Tight fit · 6.6″17 cm
  • Parallel (8 ft2.4 m × 22 ft6.7 m)Yes, it fits · 78.6″200 cm

Typical US sizes; your city’s code may differ.

Length185.4″471 cm
Width74.9″190 cm(up to 78.7″200 cm)
Height65.3″166 cm
Wheelbase112.8″287 cm
Ground clearance8.5″22 cm
Seats5
Cargo space29.7 cu ft841 L
Cargo, rear seats folded63.3 cu ft1,792 L
Curb weight4,105 lb1,862 kg(up to 5,105 lb2,316 kg)
Max towing3,500 lb1,588 kg
Max payload1,189 lb539 kg(up to 1,292 lb586 kg)

Based on 111 trims, model years 2018–2027.

Quick answers

How long is the XC60?
15′ 5″ (185.4″)471 cm.
Will the XC60 fit in a standard 2-car garage?
Yes. A 20 ft deep garage leaves 54.6″139 cm of room, enough to walk around it. Check your own garage.
Does it fit a standard parking space?
Yes. A 9 × 18 ft space leaves 30.6″78 cm of length.
Will it clear a 7 ft garage door?
Yes. At 65.3″166 cm tall it clears a 7 ft door by 18.7″47 cm (without a roof box).
How wide is it with mirrors?
About 87.7″223 cm: 78.7″200 cm body width plus an estimated 9.0″23 cm for the mirrors (manufacturers don't publish it).
How much does the XC60 cost?
The 2027 XC60 starts at $49,700 (MSRP, before destination and taxes). See all trims and prices below.
How much can the XC60 tow?
Up to 3,500 lb when properly equipped (best version; most trims are rated lower). Towing capacity of every XC60 version and what it can tow.

2027 XC60 prices and engines

The 2027 XC60 starts at $49,700 (B5 Core AWD) and goes up to $72,050 (T8 Ultra Black Edition). Properly equipped, it tows up to 3,500 lb.

TrimEngineHPDriveEconomyTowsMSRP
B5 Core2.0L I4 mild hybrid247AWD26 MPG3,500 lb$49,700
B5 Plus2.0L I4 mild hybrid247AWD26 MPG3,500 lb$54,900
B5 Ultra2.0L I4 mild hybrid247AWD26 MPG3,500 lb$59,650
T8 Plus2.0L I4 plug-in hybrid401AWD28 MPG3,500 lb$66,200
T8 Ultra2.0L I4 plug-in hybrid401AWD28 MPG3,500 lb$70,950
T8 Ultra Black Edition2.0L I4 plug-in hybrid401AWD28 MPG3,500 lb$72,050

Manufacturer's suggested retail prices for the 2027 model year, before destination fees, taxes and options.

How it changed from the previous generation

vs XC60 2015–2017

  • Length+2.6″7 cm bigger
  • Width+0.5″1 cm bigger
  • Height−2.1″5 cm smaller
  • Wheelbase+3.6″9 cm bigger
