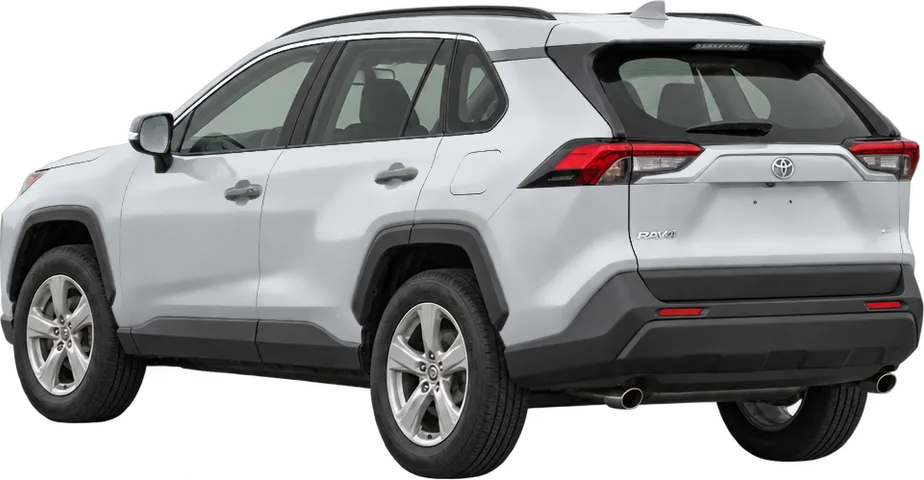

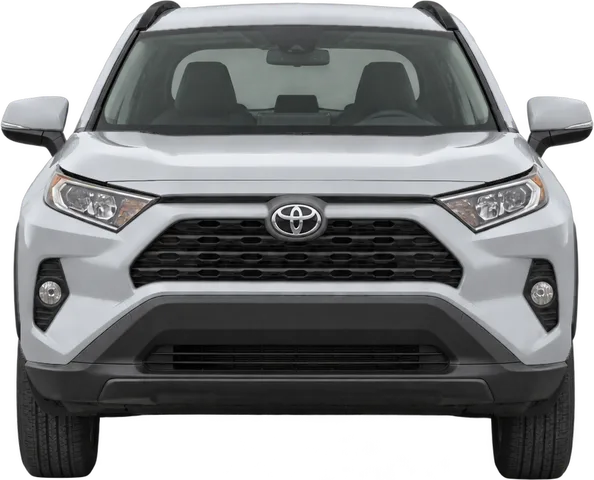

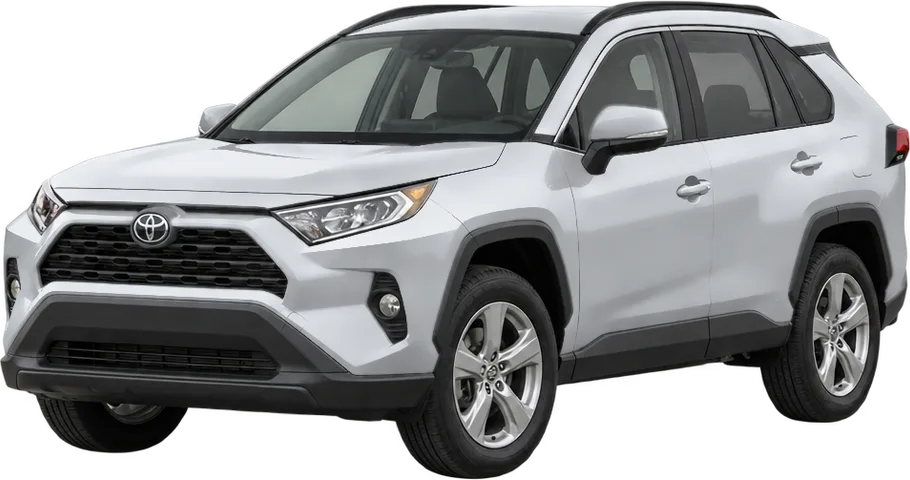

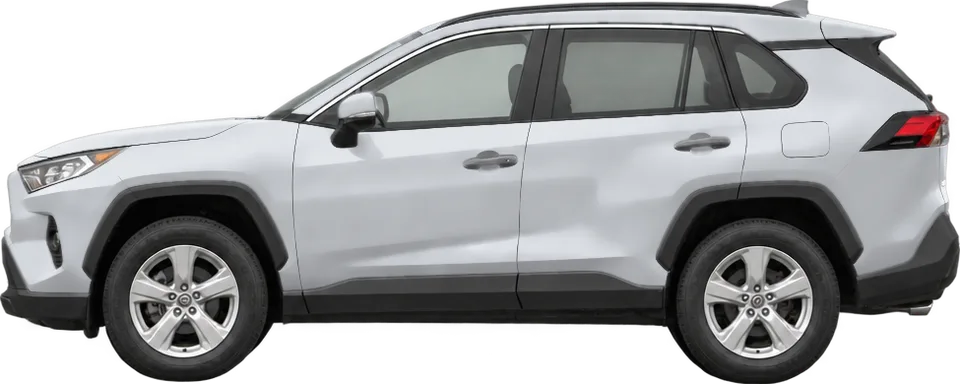

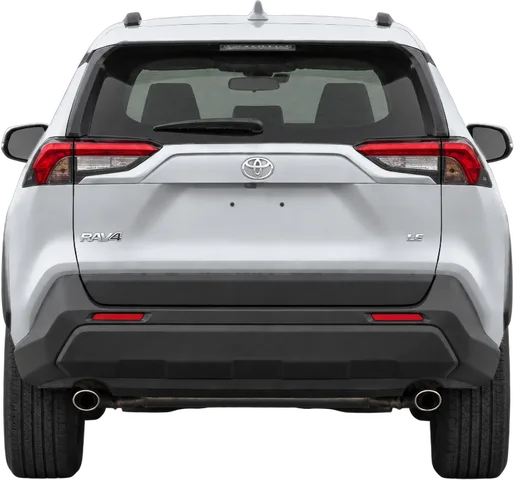

Toyota RAV4 (2019–2025) dimensions
Generation XA50
15′ 1″ (180.9″)459 cm long and 73.0″185 cm wide.
In a standard 2-car garage (20 ft6.1 m × 20 ft6.1 m)
Yes, it fits
58.5″149 cm to spare lengthwise
Uses the longest trim. Leave about 3 ft0.9 m to walk around the car.
Check your own garageFuel and efficiency
- Powertrains
- Gas, Hybrid, Plug-in hybrid
- Combined MPG
- 27–40
Source: EPA fueleconomy.gov
Parking spaces
- Standard (9 ft2.7 m × 18 ft5.5 m)Yes, it fits · 34.5″88 cm
- Compact (8 ft2.4 m × 16 ft4.9 m)Tight fit · 10.5″27 cm
- Parallel (8 ft2.4 m × 22 ft6.7 m)Yes, it fits · 82.5″210 cm
Typical US sizes; your city’s code may differ.
| Length | 180.9″459 cm(up to 181.5″461 cm) |
|---|---|
| Width | 73.0″185 cm(up to 73.4″186 cm) |
| Height | 67.0″170 cm(up to 68.6″174 cm) |
| Wheelbase | 105.9″269 cm |
| Ground clearance | 8.1″21 cm |
| Seats | 5 |
| Cargo space | 37.6 cu ft1,065 L |
| Cargo, rear seats folded | 69.8 cu ft1,977 L |
| Curb weight | 3,755 lb1,703 kg(up to 3,800 lb1,724 kg) |
| Max towing | 1,500 lb680 kg(up to 3,500 lb1,588 kg) |
| Max payload | 1,120 lb508 kg(up to 1,240 lb562 kg) |
Based on 31 trims, model years 2019–2020.
How it changed from the previous generation
- Length−2.6″7 cm smaller
- Width+0.4″1 cm bigger
- Height about the same
- Wheelbase+1.2″3 cm bigger
