Volvo XC40 (2019–present) dimensions

14′ 6″ (174.2″)442 cm long and 75.2″191 cm wide.

Volvo XC40 2026 side view

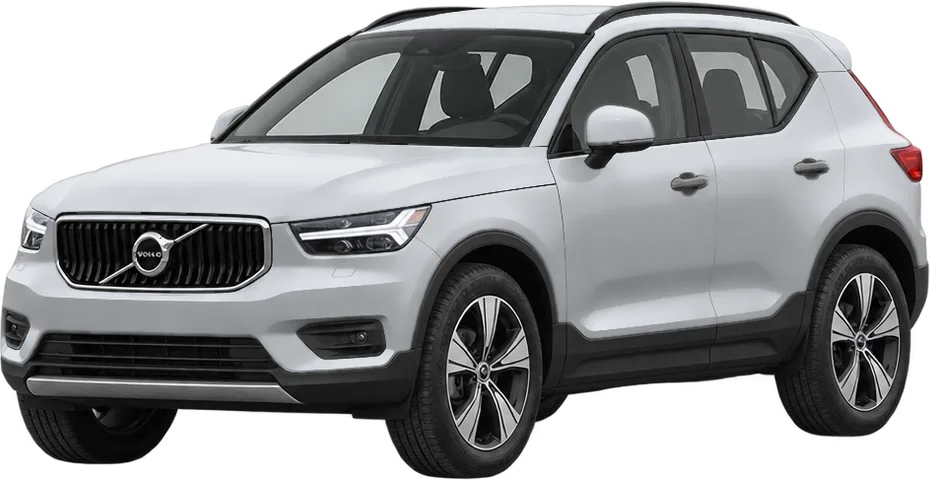

Volvo XC40 2026 front three-quarter view

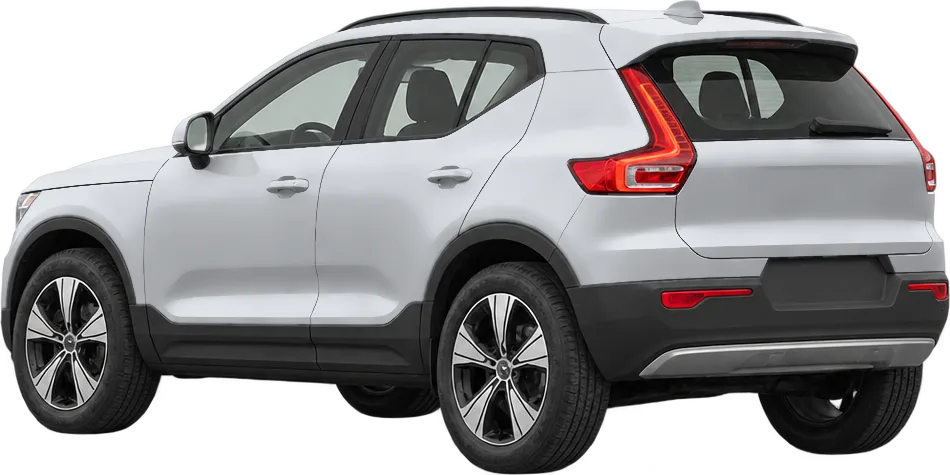

Volvo XC40 2026 rear three-quarter view

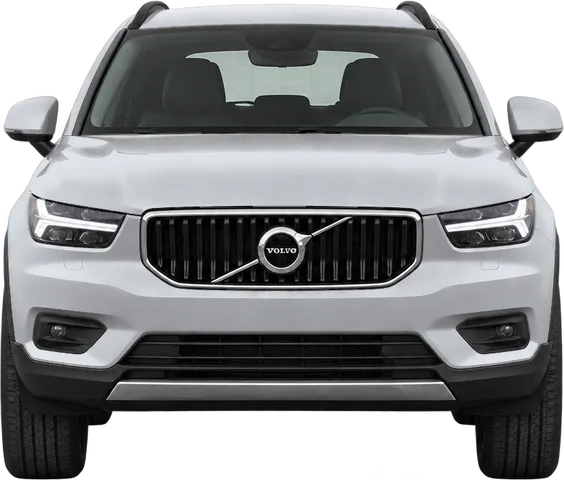

Volvo XC40 2026 front view

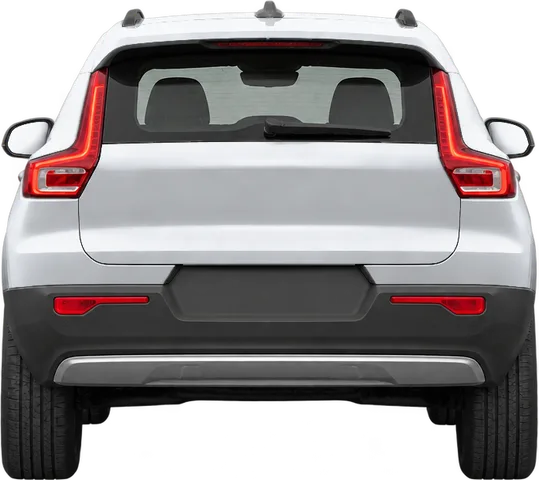

Volvo XC40 2026 rear view

In a standard 2-car garage (20 ft6.1 m × 20 ft6.1 m)

Yes, it fits

65.8″167 cm to spare lengthwise

Uses the longest trim. Leave about 3 ft0.9 m to walk around the car.

Check your own garage

Fuel and efficiency

Powertrains
Gas, Electric, Hybrid
Combined MPG
25–106
EV range
293 mi
Trunk (EPA)
25.0 cu ft708 L

Source: EPA fueleconomy.gov

Parking spaces

  • Standard (9 ft2.7 m × 18 ft5.5 m)Yes, it fits · 41.8″106 cm
  • Compact (8 ft2.4 m × 16 ft4.9 m)Tight fit · 17.8″45 cm
  • Parallel (8 ft2.4 m × 22 ft6.7 m)Yes, it fits · 89.8″228 cm

Typical US sizes; your city’s code may differ.

Length174.2″442 cm
Width75.2″191 cm
Height65.3″166 cm
Wheelbase106.4″270 cm
Ground clearance8.3″21 cm
Seats5
Cargo space20.7 cu ft586 L
Cargo, rear seats folded57.5 cu ft1,628 L
Curb weight3,756 lb1,704 kg
Max towing3,500 lb1,588 kg
Max payload1,185 lb538 kg(up to 1,266 lb574 kg)

Based on 12 trims, model years 2019–2020.

Quick answers

How long is the XC40?
14′ 6″ (174.2″)442 cm.
Will the XC40 fit in a standard 2-car garage?
Yes. A 20 ft deep garage leaves 65.8″167 cm of room, enough to walk around it. Check your own garage.
Does it fit a standard parking space?
Yes. A 9 × 18 ft space leaves 41.8″106 cm of length.
Will it clear a 7 ft garage door?
Yes. At 65.3″166 cm tall it clears a 7 ft door by 18.7″47 cm (without a roof box).
How wide is it with mirrors?
About 84.2″214 cm: 75.2″191 cm body width plus an estimated 9.0″23 cm for the mirrors (manufacturers don't publish it).
