Toyota Tacoma (2016–2023) dimensions

Generation N300

17′ 8″ (212.3″)539 cm long and 75.2″191 cm wide (Double Cab · 5.0 ft bed). Comes in 3 body styles.

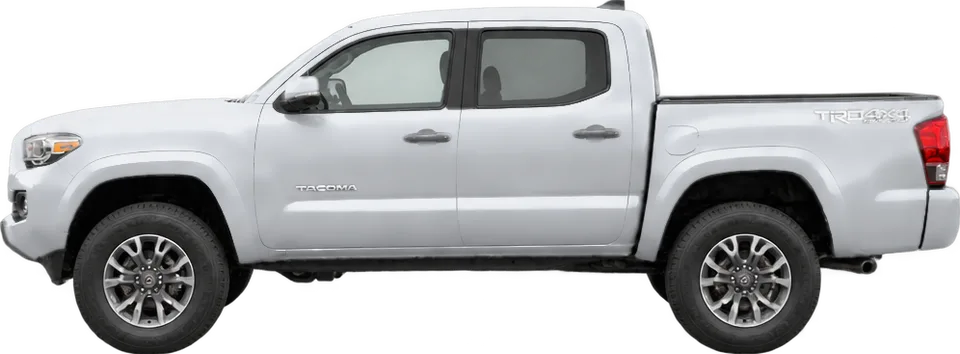

Toyota Tacoma 2023 side view

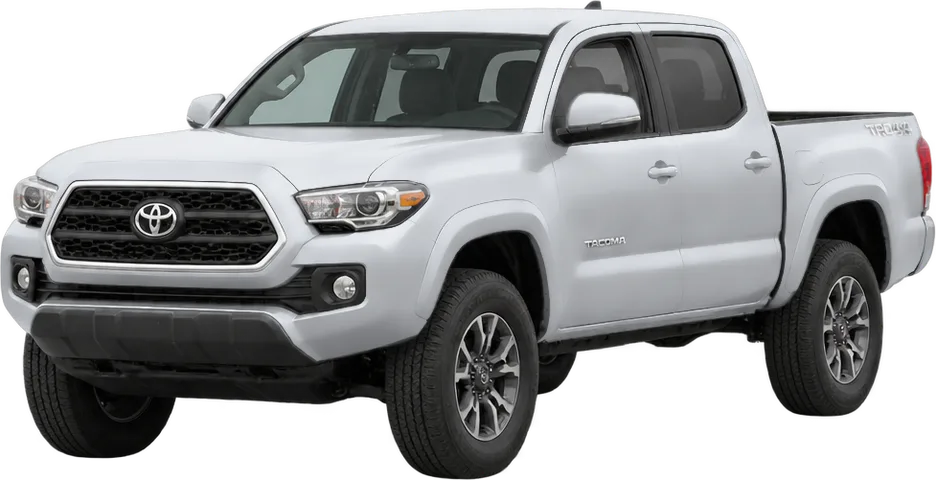

Toyota Tacoma 2023 front three-quarter view

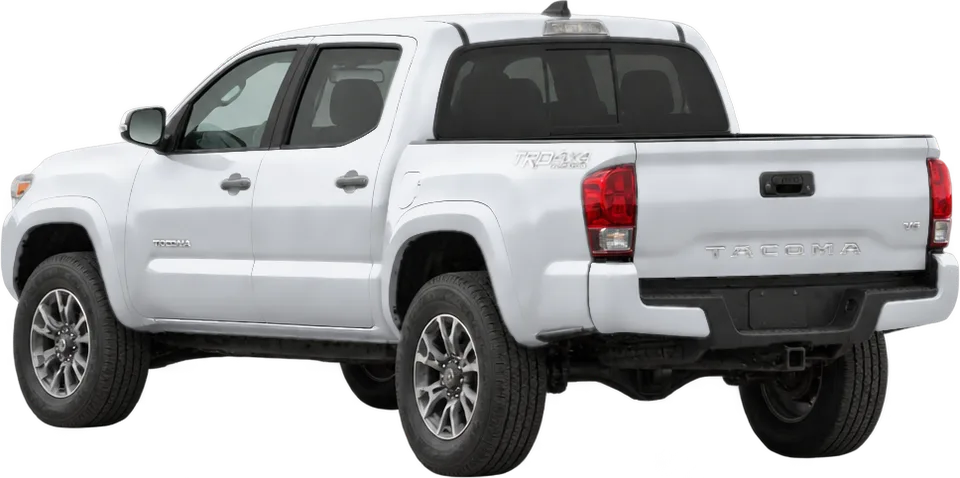

Toyota Tacoma 2023 rear three-quarter view

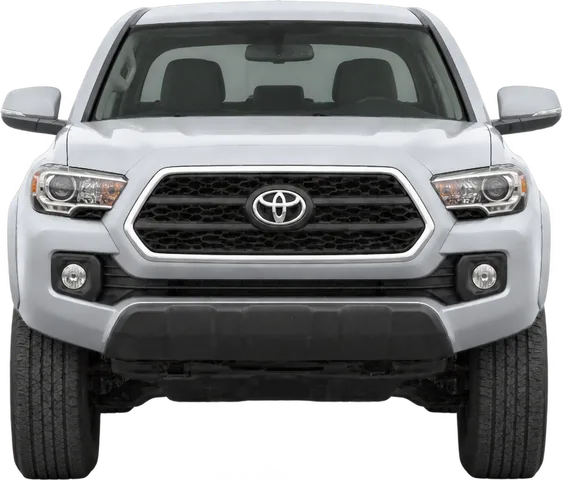

Toyota Tacoma 2023 front view

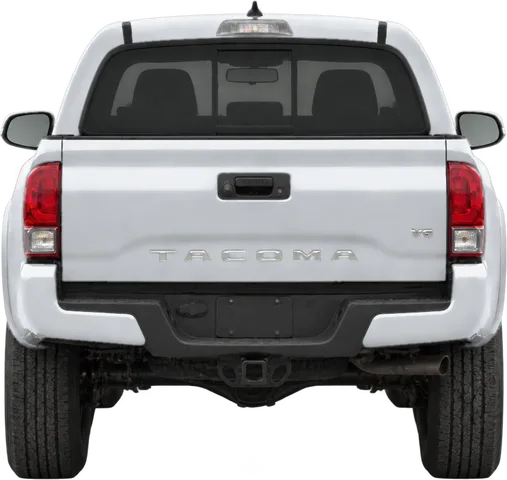

Toyota Tacoma 2023 rear view

In a standard 2-car garage (20 ft6.1 m × 20 ft6.1 m)

Tight fit

14.5″37 cm to spare lengthwise

Uses the longest trim. Leave about 3 ft0.9 m to walk around the car.

Check your own garage

Fuel and efficiency

Powertrains
Gas
Combined MPG
18–21

Source: EPA fueleconomy.gov

Parking spaces

  • Standard (9 ft2.7 m × 18 ft5.5 m)Too long · −9.5″24 cm
  • Compact (8 ft2.4 m × 16 ft4.9 m)Too long · −33.5″85 cm
  • Parallel (8 ft2.4 m × 22 ft6.7 m)Tight fit · 38.5″98 cm

Typical US sizes; your city’s code may differ.

Toyota Tacoma Double Cab · 5.0 ft bed

Length212.3″539 cm(up to 225.5″573 cm)
Width75.2″191 cm
Height70.6″179 cm(up to 71.6″182 cm)
Wheelbase127.4″324 cm
Ground clearance9.4″24 cm
Seats5
Curb weight4,425 lb2,007 kg(up to 4,480 lb2,032 kg)
Max towing6,400 lb2,903 kg(up to 6,700 lb3,039 kg)
Max payload1,175 lb533 kg(up to 1,505 lb683 kg)

Based on 71 trims, model years 2016–2020.

Toyota Tacoma Access Cab · 6.1 ft bed

Length212.3″539 cm
Width74.4″189 cm(up to 75.2″191 cm)
Height70.6″179 cm
Wheelbase127.4″324 cm
Ground clearance9.4″24 cm
Seats4
Curb weight4,305 lb1,953 kg(up to 4,325 lb1,962 kg)
Max towing3,500 lb1,588 kg(up to 6,800 lb3,084 kg)
Max payload1,295 lb587 kg(up to 1,620 lb735 kg)

Based on 58 trims, model years 2016–2020.

Toyota Tacoma Double Cab · 6.1 ft bed

Length225.5″573 cm
Width75.2″191 cm
Height70.6″179 cm
Wheelbase140.6″357 cm
Ground clearance9.4″24 cm
Seats5
Curb weight4,480 lb2,032 kg
Max towing6,400 lb2,903 kg(up to 6,600 lb2,994 kg)
Max payload1,120 lb508 kg(up to 1,370 lb621 kg)

Based on 27 trims, model years 2016–2020.

How it changed from the previous generation

vs Tacoma 2005–2015

  • Length+4.2″11 cm bigger
  • Width+0.6″2 cm bigger
  • Height+0.5″1 cm bigger
  • Wheelbase about the same
