Ram 1500 (2009–2018) dimensions

Generation DS

19′ 3″ (231.0″)587 cm long and 79.4″202 cm wide (Regular Cab · Big Horn). Comes in 36 body styles.

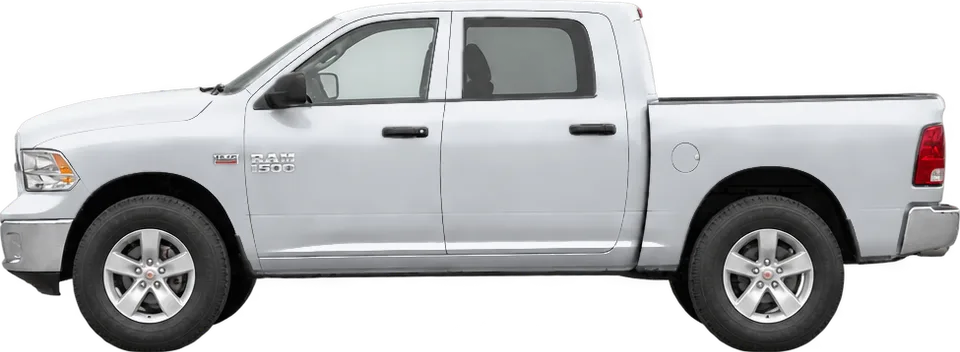

Ram 1500 2018 side view

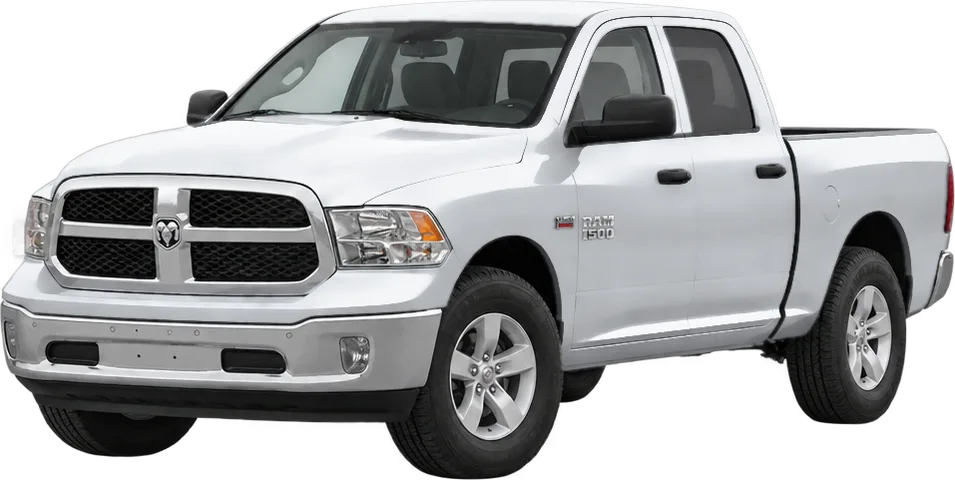

Ram 1500 2018 front three-quarter view

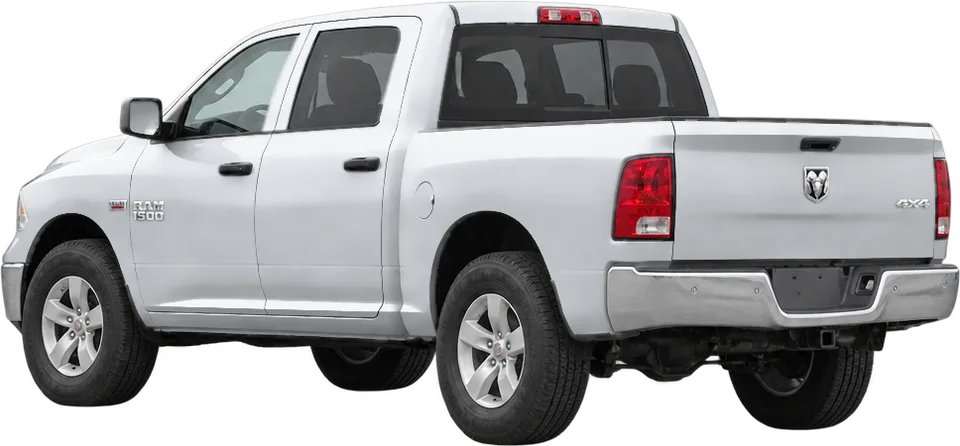

Ram 1500 2018 rear three-quarter view

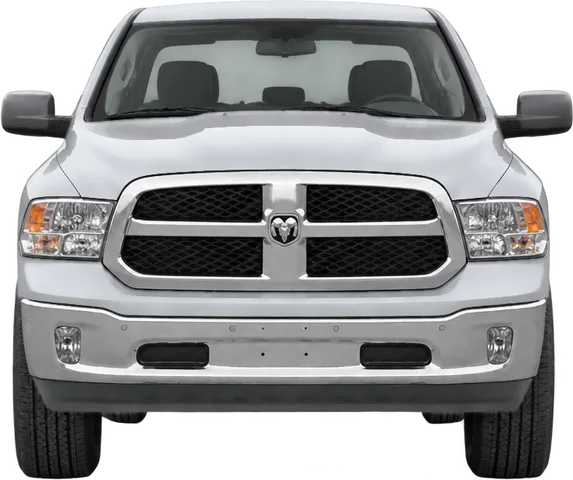

Ram 1500 2018 front view

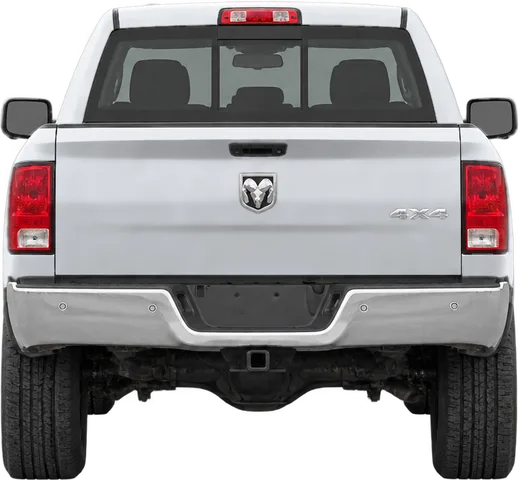

Ram 1500 2018 rear view

In a standard 2-car garage (20 ft6.1 m × 20 ft6.1 m)

Very tight

9.0″23 cm to spare lengthwise

Uses the longest trim. Leave about 3 ft0.9 m to walk around the car.

Check your own garage

Fuel and efficiency

Powertrains
Gas, Flex-fuel, Diesel
Combined MPG
14–24

Source: EPA fueleconomy.gov

Parking spaces

  • Standard (9 ft2.7 m × 18 ft5.5 m)Too long · −15.0″38 cm
  • Compact (8 ft2.4 m × 16 ft4.9 m)Too long · −39.0″99 cm
  • Parallel (8 ft2.4 m × 22 ft6.7 m)Tight fit · 33.0″84 cm

Typical US sizes; your city’s code may differ.

Ram 1500 Regular Cab · Big Horn

Length231.0″587 cm
Width79.4″202 cm
Height75.2″191 cm
Wheelbase140.5″357 cm
Ground clearance8.7″22 cm
Seats3
Curb weight4,909 lb2,227 kg
Max towing9,160 lb4,155 kg(up to 10,810 lb4,903 kg)
Max payload1,562 lb709 kg(up to 1,900 lb862 kg)

Based on 20 trims, model years 2015–2018.

Ram 1500 Crew Cab · Big Horn

Length237.9″604 cm
Width79.4″202 cm
Height77.5″197 cm(up to 78.5″199 cm)
Wheelbase140.5″357 cm
Ground clearance9.4″24 cm
Seats6
Curb weight5,443 lb2,469 kg
Max towing10,140 lb4,599 kg(up to 10,510 lb4,767 kg)
Max payload1,510 lb685 kg(up to 1,850 lb839 kg)

Based on 20 trims, model years 2015–2018.

Ram 1500 Crew Cab · Lone Star

Length237.9″604 cm
Width79.4″202 cm
Height77.5″197 cm(up to 78.5″199 cm)
Wheelbase140.5″357 cm
Ground clearance9.4″24 cm
Seats6
Curb weight5,443 lb2,469 kg
Max towing10,140 lb4,599 kg(up to 10,510 lb4,767 kg)
Max payload1,510 lb685 kg(up to 1,850 lb839 kg)

Based on 20 trims, model years 2015–2018.

Ram 1500 Regular Cab · Lone Star

Length231.0″587 cm
Width79.4″202 cm
Height75.2″191 cm
Wheelbase140.5″357 cm
Ground clearance8.7″22 cm
Seats3
Curb weight4,909 lb2,227 kg
Max towing9,160 lb4,155 kg(up to 10,810 lb4,903 kg)
Max payload1,562 lb709 kg(up to 1,900 lb862 kg)

Based on 20 trims, model years 2015–2018.

Ram 1500 Crew Cab · Laramie

Length237.9″604 cm
Width79.4″202 cm
Height77.6″197 cm(up to 78.5″199 cm)
Wheelbase140.5″357 cm
Ground clearance9.4″24 cm
Seats6
Curb weight5,617 lb2,548 kg
Max towing10,220 lb4,636 kg(up to 10,320 lb4,681 kg)
Max payload1,510 lb685 kg(up to 1,850 lb839 kg)

Based on 16 trims, model years 2015–2018.

Ram 1500 Crew Cab · Limited

Length237.9″604 cm
Width79.4″202 cm
Height77.5″197 cm(up to 78.5″199 cm)
Wheelbase149.5″380 cm
Ground clearance9.4″24 cm
Seats5
Curb weight5,514 lb2,501 kg(up to 5,780 lb2,622 kg)
Max towing10,220 lb4,636 kg(up to 10,480 lb4,754 kg)
Max payload1,654 lb750 kg(up to 1,710 lb776 kg)

Based on 16 trims, model years 2015–2018.

Ram 1500 Crew Cab · Longhorn

Length237.9″604 cm
Width79.4″202 cm
Height77.5″197 cm(up to 78.5″199 cm)
Wheelbase140.5″357 cm
Ground clearance9.2″23 cm
Seats5
Curb weight5,514 lb2,501 kg(up to 5,780 lb2,622 kg)
Max towing10,220 lb4,636 kg(up to 10,480 lb4,754 kg)
Max payload1,510 lb685 kg(up to 1,710 lb776 kg)

Based on 16 trims, model years 2015–2018.

Ram 1500 Crew Cab · Sport

Length237.9″604 cm
Width79.4″202 cm
Height77.6″197 cm(up to 78.5″199 cm)
Wheelbase140.5″357 cm
Ground clearance9.4″24 cm
Seats5
Curb weight5,301 lb2,404 kg(up to 5,536 lb2,511 kg)
Max towing10,220 lb4,636 kg(up to 10,400 lb4,717 kg)
Max payload1,640 lb744 kg(up to 1,710 lb776 kg)

Based on 16 trims, model years 2015–2018.

Ram 1500 Crew Cab · Tradesman

Length237.9″604 cm
Width79.4″202 cm
Height77.5″197 cm
Wheelbase140.5″357 cm
Ground clearance8.6″22 cm
Seats6
Curb weight5,308 lb2,408 kg(up to 5,402 lb2,450 kg)
Max towing10,140 lb4,599 kg(up to 10,530 lb4,776 kg)
Max payload1,510 lb685 kg(up to 1,850 lb839 kg)

Based on 16 trims, model years 2015–2018.

Ram 1500 Regular Cab · Tradesman

Length231.0″587 cm
Width79.4″202 cm
Height75.2″191 cm
Wheelbase140.5″357 cm
Ground clearance8.7″22 cm
Seats3
Curb weight5,048 lb2,290 kg
Max towing9,160 lb4,155 kg(up to 10,840 lb4,917 kg)
Max payload1,583 lb718 kg(up to 1,900 lb862 kg)

Based on 16 trims, model years 2015–2018.

Ram 1500 Crew Cab · SLT

Length237.9″604 cm
Width79.4″202 cm
Height77.5″197 cm
Wheelbase140.5″357 cm
Ground clearance8.6″22 cm
Seats6
Curb weight5,443 lb2,469 kg
Max towing10,510 lb4,767 kg
Max payload1,850 lb839 kg

Based on 12 trims, model years 2015–2017.

Ram 1500 Regular Cab · SLT

Length231.0″587 cm
Width79.4″202 cm
Height75.2″191 cm
Wheelbase140.5″357 cm
Ground clearance8.7″22 cm
Seats3
Curb weight4,909 lb2,227 kg
Max towing10,810 lb4,903 kg
Max payload1,900 lb862 kg

Based on 12 trims, model years 2015–2017.

Ram 1500 Quad Cab · Big Horn

Length229.0″582 cm
Width79.4″202 cm
Height77.7″197 cm(up to 78.8″200 cm)
Wheelbase140.5″357 cm
Ground clearance8.6″22 cm
Seats6
Curb weight5,093 lb2,310 kg(up to 5,146 lb2,334 kg)
Max towing10,590 lb4,804 kg
Max payload1,887 lb856 kg(up to 1,900 lb862 kg)

Based on 10 trims, model years 2015–2018.

Ram 1500 Quad Cab · Lone Star

Length229.0″582 cm
Width79.4″202 cm
Height77.7″197 cm
Wheelbase140.5″357 cm
Ground clearance8.6″22 cm
Seats6
Curb weight5,093 lb2,310 kg(up to 5,146 lb2,334 kg)
Max towing10,590 lb4,804 kg
Max payload1,887 lb856 kg(up to 1,900 lb862 kg)

Based on 10 trims, model years 2015–2018.

Ram 1500 Crew Cab · Lone Star Silver

Length237.9″604 cm
Width79.4″202 cm
Height76.8″195 cm(up to 77.5″197 cm)
Wheelbase149.5″380 cm
Seats5
Max towing10,200 lb4,627 kg(up to 10,330 lb4,686 kg)
Max payload1,640 lb744 kg(up to 1,820 lb826 kg)

Based on 9 trims, model years 2017–2018.

Ram 1500 Crew Cab · Express

Length229.0″582 cm
Width79.4″202 cm
Height77.6″197 cm(up to 78.5″199 cm)
Wheelbase140.5″357 cm
Ground clearance9.2″23 cm
Seats6
Curb weight5,364 lb2,433 kg
Max towing10,320 lb4,681 kg(up to 10,360 lb4,699 kg)
Max payload1,850 lb839 kg

Based on 8 trims, model years 2015–2018.

Ram 1500 Quad Cab · Express

Length229.0″582 cm
Width79.4″202 cm
Height77.7″197 cm(up to 78.8″200 cm)
Wheelbase140.5″357 cm
Ground clearance9.3″24 cm
Seats6
Curb weight5,226 lb2,370 kg
Max towing10,340 lb4,690 kg(up to 10,430 lb4,731 kg)
Max payload1,880 lb853 kg(up to 1,900 lb862 kg)

Based on 8 trims, model years 2015–2018.

Ram 1500 Quad Cab · Laramie

Length229.0″582 cm
Width79.4″202 cm
Height78.8″200 cm
Wheelbase140.5″357 cm
Ground clearance9.3″24 cm
Seats6
Curb weight5,499 lb2,494 kg
Max towing10,340 lb4,690 kg(up to 10,360 lb4,699 kg)
Max payload1,880 lb853 kg(up to 1,900 lb862 kg)

Based on 8 trims, model years 2015–2018.

Ram 1500 Quad Cab · Sport

Length229.0″582 cm
Width79.4″202 cm
Height78.8″200 cm
Wheelbase140.5″357 cm
Ground clearance9.3″24 cm
Seats5
Curb weight5,426 lb2,461 kg
Max towing10,340 lb4,690 kg(up to 10,490 lb4,758 kg)
Max payload1,880 lb853 kg

Based on 8 trims, model years 2015–2018.

Ram 1500 Quad Cab · Tradesman

Length229.0″582 cm
Width79.4″202 cm
Height77.7″197 cm
Wheelbase140.5″357 cm
Ground clearance8.7″22 cm
Seats6
Curb weight5,226 lb2,370 kg
Max towing10,340 lb4,690 kg(up to 10,640 lb4,826 kg)
Max payload1,880 lb853 kg(up to 1,931 lb876 kg)

Based on 8 trims, model years 2015–2018.

Ram 1500 Regular Cab · Express

Length209.0″531 cm
Width79.4″202 cm
Height75.2″191 cm
Wheelbase120.5″306 cm
Ground clearance8.7″22 cm
Seats3
Curb weight4,909 lb2,227 kg
Max towing9,160 lb4,155 kg(up to 9,370 lb4,250 kg)
Max payload1,500 lb680 kg(up to 1,583 lb718 kg)

Based on 8 trims, model years 2015–2018.

Ram 1500 Regular Cab · Sport

Length209.0″531 cm
Width79.4″202 cm
Height75.2″191 cm
Wheelbase120.5″306 cm
Ground clearance8.7″22 cm
Seats2
Curb weight5,053 lb2,292 kg
Max towing9,160 lb4,155 kg(up to 9,180 lb4,164 kg)
Max payload1,590 lb721 kg(up to 1,600 lb726 kg)

Based on 8 trims, model years 2015–2018.

Ram 1500 Crew Cab · Outdoorsman

Length237.9″604 cm
Width79.4″202 cm
Height77.5″197 cm(up to 78.4″199 cm)
Wheelbase149.4″379 cm
Ground clearance8.6″22 cm
Seats5
Curb weight5,443 lb2,469 kg
Max towing10,340 lb4,690 kg
Max payload1,850 lb839 kg

Based on 6 trims, model years 2015–2016.

Ram 1500 Crew Cab · Rebel

Length229.0″582 cm
Width79.4″202 cm
Height78.5″199 cm
Wheelbase140.5″357 cm
Ground clearance9.4″24 cm
Seats5
Curb weight5,421 lb2,459 kg
Max towing10,220 lb4,636 kg(up to 10,300 lb4,672 kg)
Max payload1,680 lb762 kg

Based on 6 trims, model years 2016–2018.

Ram 1500 Quad Cab · SLT

Length229.0″582 cm
Width79.4″202 cm
Height77.7″197 cm
Wheelbase140.5″357 cm
Ground clearance8.6″22 cm
Seats6
Curb weight5,146 lb2,334 kg
Max towing10,590 lb4,804 kg
Max payload1,900 lb862 kg

Based on 6 trims, model years 2015–2017.

Ram 1500 Crew Cab · Night

Length237.9″604 cm
Width79.4″202 cm
Height78.5″199 cm
Wheelbase149.5″380 cm
Seats5
Max towing10,140 lb4,599 kg(up to 10,220 lb4,636 kg)
Max payload1,640 lb744 kg

Based on 5 trims, model years 2017–2018.

Ram 1500 Crew Cab · SLT Fleet

Seats6

Based on 4 trims, model years 2018.

Ram 1500 Regular Cab · SLT Fleet

Seats3

Based on 4 trims, model years 2018.

Ram 1500 Quad Cab · Outdoorsman

Length229.0″582 cm
Width79.4″202 cm
Height77.7″197 cm
Wheelbase140.5″357 cm
Ground clearance8.6″22 cm
Seats5
Curb weight5,347 lb2,425 kg
Max towing10,400 lb4,717 kg
Max payload1,900 lb862 kg

Based on 3 trims, model years 2015–2016.

Ram 1500 Quad Cab · HFE

Length229.0″582 cm
Width79.4″202 cm
Height77.9″198 cm
Wheelbase140.5″357 cm
Ground clearance9.3″24 cm
Seats6

Based on 2 trims, model years 2015–2018.

Ram 1500 Quad Cab · Night

Length229.0″582 cm
Width79.4″202 cm
Height77.7″197 cm
Wheelbase140.5″357 cm
Seats5
Max towing10,340 lb4,690 kg
Max payload1,880 lb853 kg

Based on 2 trims, model years 2017.

Ram 1500 Quad Cab · SLT Fleet

Seats6

Based on 2 trims, model years 2018.

Ram 1500 Quad Cab · Tradesman HFE

Length229.0″582 cm
Width79.4″202 cm
Height77.2″196 cm
Wheelbase140.5″357 cm
Ground clearance8.7″22 cm
Seats6
Curb weight5,435 lb2,465 kg
Max towing8,090 lb3,670 kg
Max payload1,880 lb853 kg

Based on 2 trims, model years 2016–2017.

Ram 1500 Regular Cab · HFE

Length209.0″531 cm
Width79.4″202 cm
Height74.6″189 cm
Wheelbase120.5″306 cm
Ground clearance8.7″22 cm
Seats3
Curb weight4,684 lb2,125 kg
Max towing5,110 lb2,318 kg
Max payload1,450 lb658 kg

Based on 2 trims, model years 2015–2016.

Ram 1500 Regular Cab · Night

Length209.0″531 cm
Width79.4″202 cm
Height75.2″191 cm
Wheelbase120.5″306 cm
Seats2
Max towing9,160 lb4,155 kg
Max payload1,590 lb721 kg

Based on 2 trims, model years 2017.

Ram 1500 Quad Cab · Express HFE

Length229.0″582 cm
Width79.4″202 cm
Height77.2″196 cm
Wheelbase140.5″357 cm
Ground clearance8.7″22 cm
Seats6
Curb weight5,435 lb2,465 kg
Max towing8,090 lb3,670 kg
Max payload1,510 lb685 kg

Based on 1 trims, model years 2016.

Quick answers

How long is the 1500?
19′ 3″ (231.0″)587 cm.
Will the 1500 fit in a standard 2-car garage?
Only just: a 20 ft deep garage leaves 9.0″23 cm, not enough to walk around it comfortably. Check your own garage.
Does it fit a standard parking space?
Not quite: it overhangs a 9 × 18 ft space by 15.0″38 cm.
Will it clear a 7 ft garage door?
Yes. At 75.2″191 cm tall it clears a 7 ft door by 8.8″22 cm (without a roof box).
How wide is it with mirrors?
About 88.4″225 cm: 79.4″202 cm body width plus an estimated 9.0″23 cm for the mirrors (manufacturers don't publish it).

More on the 1500
