Chevrolet Silverado (2014–2018) dimensions

Generation K2XX

19′ 2″ (230.0″)584 cm long and 80.0″203 cm wide (Crew Cab · 5.8 ft bed). Comes in 13 body styles.

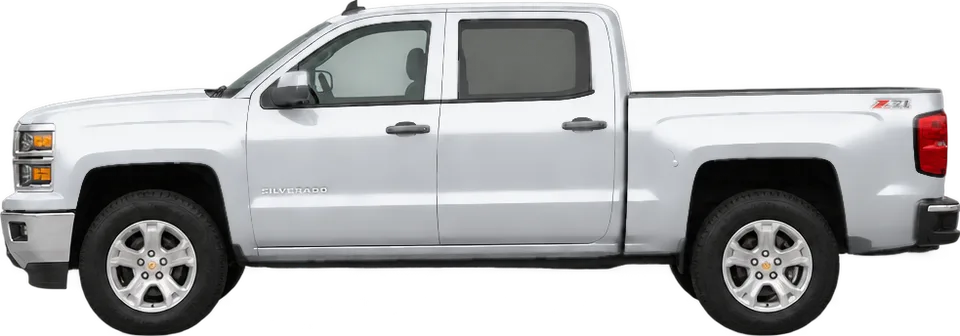

Chevrolet Silverado 2018 side view

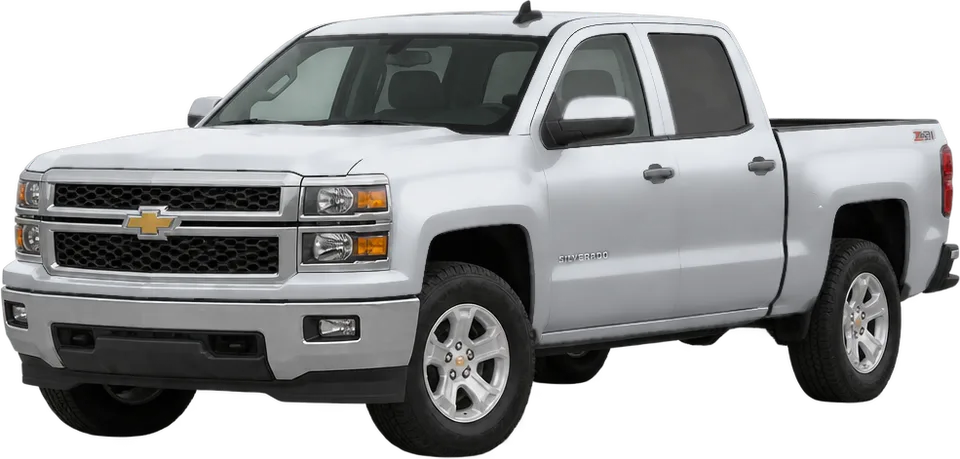

Chevrolet Silverado 2018 front three-quarter view

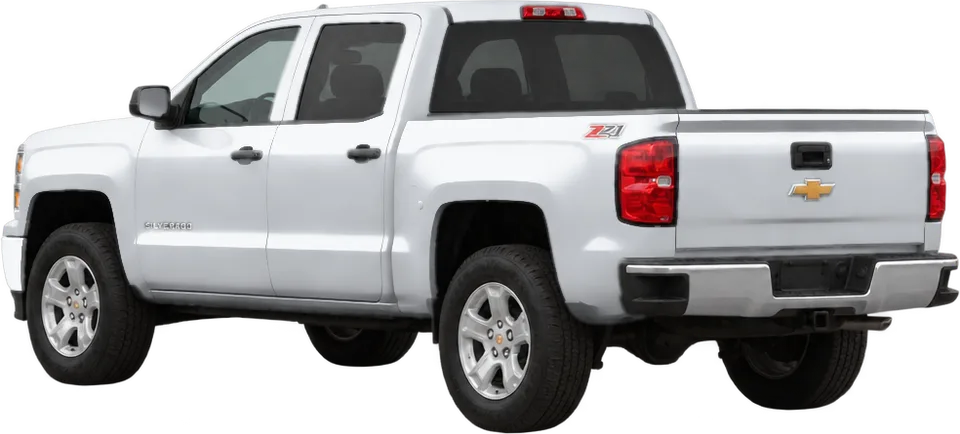

Chevrolet Silverado 2018 rear three-quarter view

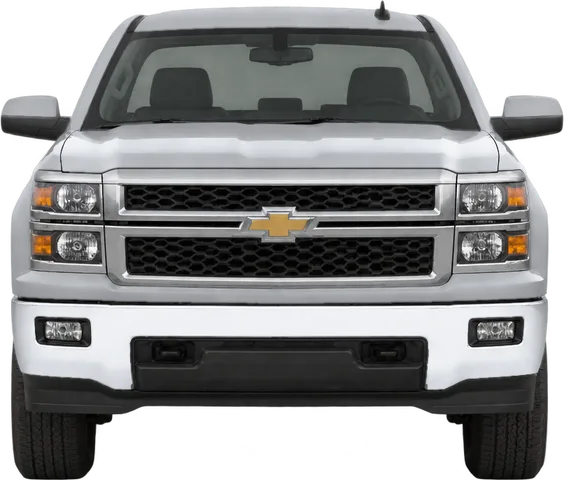

Chevrolet Silverado 2018 front view

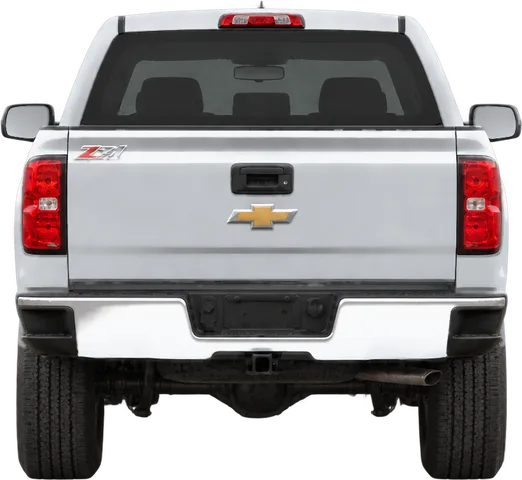

Chevrolet Silverado 2018 rear view

In a standard 2-car garage (20 ft6.1 m × 20 ft6.1 m)

Very tight

10.0″25 cm to spare lengthwise

Uses the longest trim. Leave about 3 ft0.9 m to walk around the car.

Check your own garage

Fuel and efficiency

Powertrains
Flex-fuel, Gas, Hybrid
Combined MPG
17–20

Source: EPA fueleconomy.gov

Parking spaces

  • Standard (9 ft2.7 m × 18 ft5.5 m)Too long · −14.0″36 cm
  • Compact (8 ft2.4 m × 16 ft4.9 m)Too long · −38.0″97 cm
  • Parallel (8 ft2.4 m × 22 ft6.7 m)Tight fit · 34.0″86 cm

Typical US sizes; your city’s code may differ.

Chevrolet Silverado Crew Cab · 5.8 ft bed

Length230.0″584 cm
Width80.0″203 cm
Height74.0″188 cm
Wheelbase143.5″364 cm
Ground clearance8.9″23 cm
Seats6
Curb weight5,300 lb2,404 kg(up to 5,308 lb2,408 kg)
Max towing9,100 lb4,128 kg(up to 12,500 lb5,670 kg)
Max payload1,770 lb803 kg(up to 1,840 lb835 kg)

Based on 52 trims, model years 2015–2018.

Chevrolet Silverado Crew Cab · 6.5 ft bed

Length239.6″609 cm
Width80.0″203 cm
Height73.8″187 cm
Wheelbase153.0″389 cm
Ground clearance8.9″23 cm
Seats6
Curb weight5,461 lb2,477 kg
Max towing9,300 lb4,218 kg(up to 11,900 lb5,398 kg)
Max payload1,710 lb776 kg(up to 1,740 lb789 kg)

Based on 52 trims, model years 2015–2018.

Chevrolet Silverado Regular Cab · LS

Length224.4″570 cm
Width80.0″203 cm
Height74.1″188 cm
Wheelbase133.0″338 cm
Ground clearance8.8″22 cm
Seats3
Curb weight4,975 lb2,257 kg
Max towing9,800 lb4,445 kg
Max payload1,960 lb889 kg(up to 2,108 lb956 kg)

Based on 16 trims, model years 2015–2018.

Chevrolet Silverado Regular Cab · LT

Length224.4″570 cm
Width80.0″203 cm
Height74.1″188 cm
Wheelbase133.0″338 cm
Ground clearance8.8″22 cm
Seats3
Curb weight4,975 lb2,257 kg
Max towing9,800 lb4,445 kg(up to 11,400 lb5,171 kg)
Max payload1,960 lb889 kg(up to 2,108 lb956 kg)

Based on 16 trims, model years 2015–2018.

Chevrolet Silverado Regular Cab · Work Truck

Length224.4″570 cm
Width80.0″203 cm
Height74.1″188 cm
Wheelbase133.0″338 cm
Ground clearance8.8″22 cm
Seats3
Curb weight4,975 lb2,257 kg
Max towing9,800 lb4,445 kg(up to 10,200 lb4,627 kg)
Max payload1,960 lb889 kg(up to 2,108 lb956 kg)

Based on 16 trims, model years 2015–2018.

Chevrolet Silverado Regular Cab · Z71 LT

Length224.4″570 cm
Width80.0″203 cm
Height74.1″188 cm
Wheelbase133.0″338 cm
Ground clearance8.8″22 cm
Seats3
Curb weight4,975 lb2,257 kg
Max towing9,500 lb4,309 kg(up to 9,800 lb4,445 kg)
Max payload2,088 lb947 kg(up to 2,108 lb956 kg)

Based on 10 trims, model years 2015–2018.

Chevrolet Silverado Double Cab · LS

Length230.0″584 cm
Width80.0″203 cm
Height73.9″188 cm
Wheelbase143.5″364 cm
Ground clearance8.9″23 cm
Seats6
Curb weight5,263 lb2,387 kg
Max towing9,400 lb4,264 kg(up to 9,900 lb4,491 kg)
Max payload1,890 lb857 kg(up to 2,101 lb953 kg)

Based on 8 trims, model years 2015–2018.

Chevrolet Silverado Double Cab · LT

Length230.0″584 cm
Width80.0″203 cm
Height73.9″188 cm
Wheelbase143.5″364 cm
Ground clearance8.9″23 cm
Seats6
Curb weight5,263 lb2,387 kg
Max towing11,100 lb5,035 kg(up to 11,500 lb5,216 kg)
Max payload1,890 lb857 kg(up to 2,101 lb953 kg)

Based on 8 trims, model years 2015–2018.

Chevrolet Silverado Double Cab · LTZ

Length230.0″584 cm
Width80.0″203 cm
Height73.9″188 cm
Wheelbase143.5″364 cm
Ground clearance8.9″23 cm
Seats6
Curb weight5,263 lb2,387 kg
Max towing11,800 lb5,352 kg(up to 12,500 lb5,670 kg)
Max payload1,890 lb857 kg(up to 2,101 lb953 kg)

Based on 8 trims, model years 2015–2018.

Chevrolet Silverado Double Cab · Work Truck

Length230.0″584 cm
Width80.0″203 cm
Height73.9″188 cm
Wheelbase143.5″364 cm
Ground clearance8.9″23 cm
Seats6
Curb weight5,263 lb2,387 kg
Max towing9,400 lb4,264 kg(up to 9,900 lb4,491 kg)
Max payload1,890 lb857 kg(up to 2,101 lb953 kg)

Based on 8 trims, model years 2015–2018.

Chevrolet Silverado Double Cab · Custom

Length230.0″584 cm
Width80.0″203 cm
Height73.9″188 cm
Wheelbase143.5″364 cm
Ground clearance8.9″23 cm
Seats6
Curb weight5,263 lb2,387 kg
Max towing9,400 lb4,264 kg
Max payload1,890 lb857 kg

Based on 6 trims, model years 2016–2018.

Chevrolet Silverado Double Cab · Z71 LT

Length230.0″584 cm
Width80.0″203 cm
Height73.9″188 cm
Wheelbase143.5″364 cm
Ground clearance8.9″23 cm
Seats6
Curb weight5,263 lb2,387 kg
Max towing9,200 lb4,173 kg(up to 9,900 lb4,491 kg)
Max payload1,840 lb835 kg(up to 2,101 lb953 kg)

Based on 5 trims, model years 2015–2018.

Chevrolet Silverado Double Cab · Z71 LTZ

Length230.0″584 cm
Width80.0″203 cm
Height73.9″188 cm
Wheelbase143.5″364 cm
Ground clearance8.9″23 cm
Seats6
Curb weight5,263 lb2,387 kg
Max towing11,800 lb5,352 kg
Max payload1,840 lb835 kg(up to 2,101 lb953 kg)

Based on 5 trims, model years 2015–2018.

Quick answers

How long is the Silverado?
19′ 2″ (230.0″)584 cm.
Will the Silverado fit in a standard 2-car garage?
Only just: a 20 ft deep garage leaves 10.0″25 cm, not enough to walk around it comfortably. Check your own garage.
Does it fit a standard parking space?
Not quite: it overhangs a 9 × 18 ft space by 14.0″36 cm.
Will it clear a 7 ft garage door?
Yes. At 74.2″188 cm tall it clears a 7 ft door by 9.8″25 cm (without a roof box).
How wide is it with mirrors?
About 89.0″226 cm: 80.0″203 cm body width plus an estimated 9.0″23 cm for the mirrors (manufacturers don't publish it).
