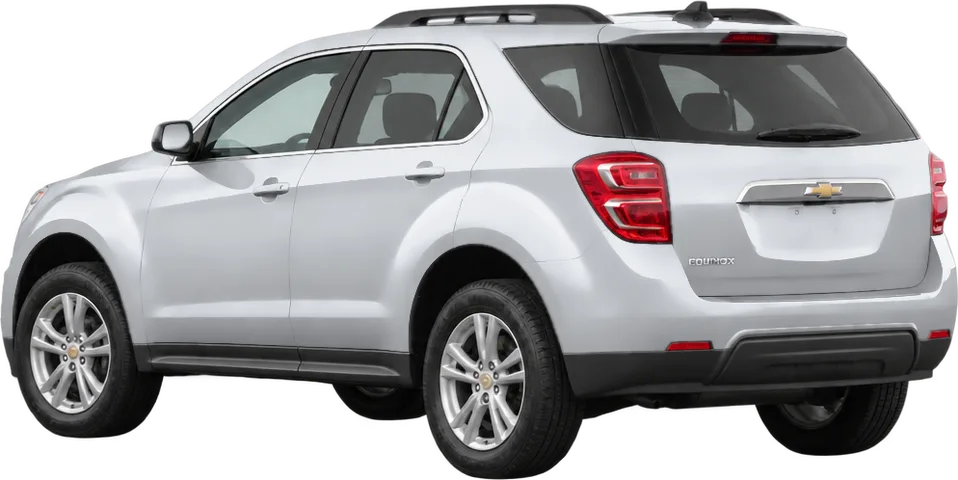

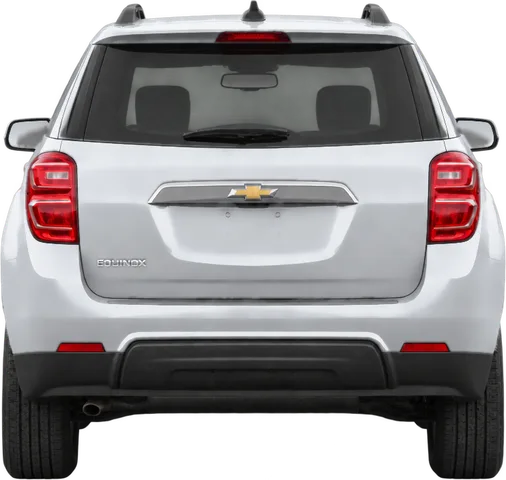

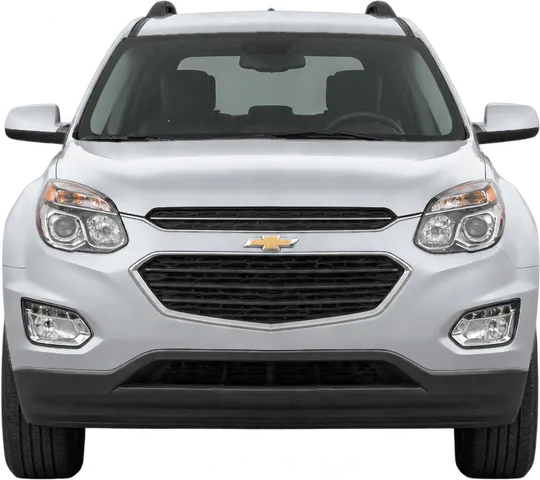

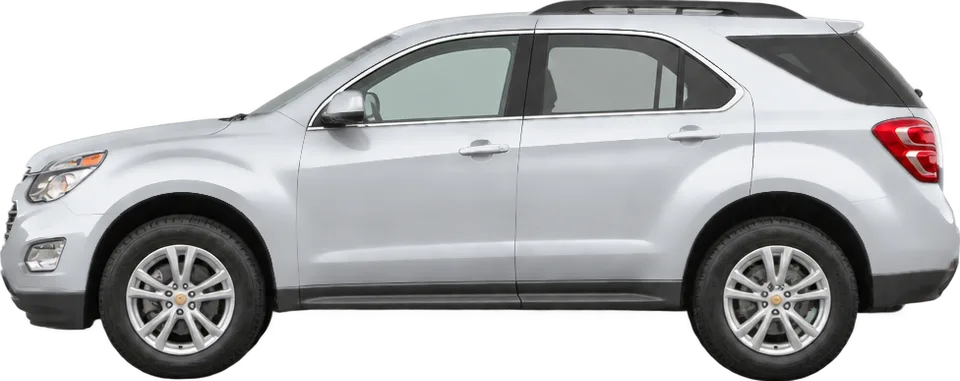

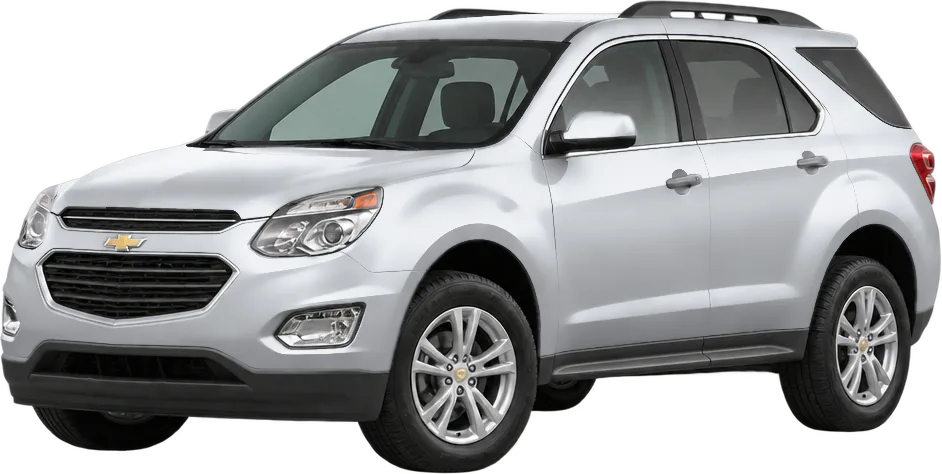

Chevrolet Equinox (2010–2017) dimensions
15′ 8″ (187.8″)477 cm long and 72.5″184 cm wide.
In a standard 2-car garage (20 ft6.1 m × 20 ft6.1 m)
Yes, it fits
52.2″133 cm to spare lengthwise
Uses the longest trim. Leave about 3 ft0.9 m to walk around the car.
Check your own garageFuel and efficiency
- Powertrains
- Flex-fuel, Gas
- Combined MPG
- 18–26
- Trunk (EPA)
- 28.0 cu ft793 L
Source: EPA fueleconomy.gov
Parking spaces
- Standard (9 ft2.7 m × 18 ft5.5 m)Yes, it fits · 28.2″72 cm
- Compact (8 ft2.4 m × 16 ft4.9 m)Very tight · 4.2″11 cm
- Parallel (8 ft2.4 m × 22 ft6.7 m)Yes, it fits · 76.2″194 cm
Typical US sizes; your city’s code may differ.
| Length | 187.8″477 cm |
|---|---|
| Width | 72.5″184 cm |
| Height | 69.3″176 cm |
| Wheelbase | 112.5″286 cm |
| Ground clearance | 6.9″18 cm |
| Seats | 5 |
| Cargo space | 31.5 cu ft892 L |
| Cargo, rear seats folded | 63.7 cu ft1,804 L |
| Curb weight | 3,764 lb1,707 kg(up to 4,007 lb1,818 kg) |
| Max towing | 1,500 lb680 kg(up to 3,500 lb1,588 kg) |
| Max payload | 1,196 lb542 kg(up to 1,202 lb545 kg) |
Based on 25 trims, model years 2015–2017.
