Cadillac XT4 (2019–present) dimensions

15′ 1″ (181.1″)460 cm long and 76.7″195 cm wide.

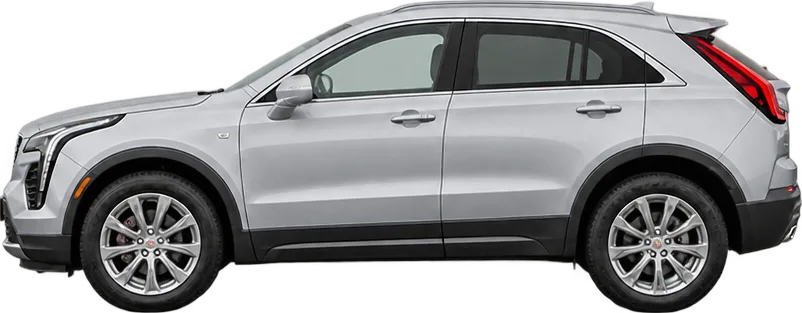

Cadillac XT4 2025 side view

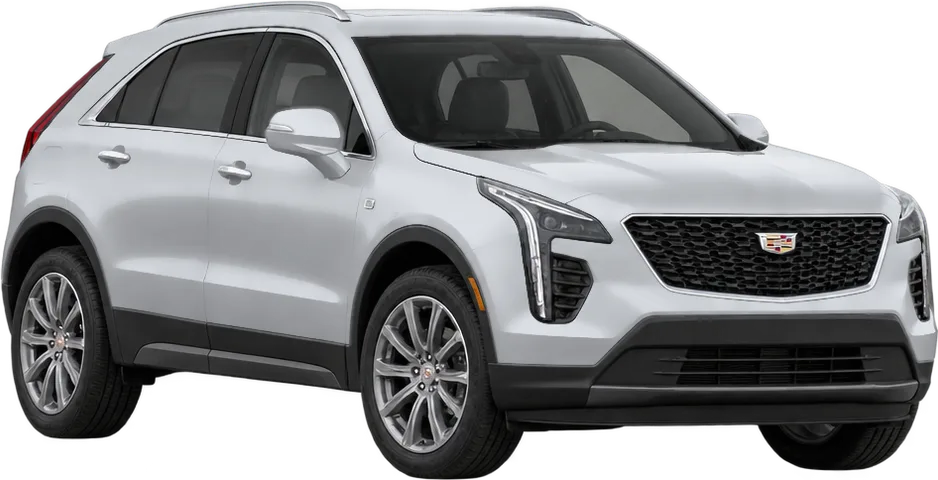

Cadillac XT4 2025 front three-quarter view

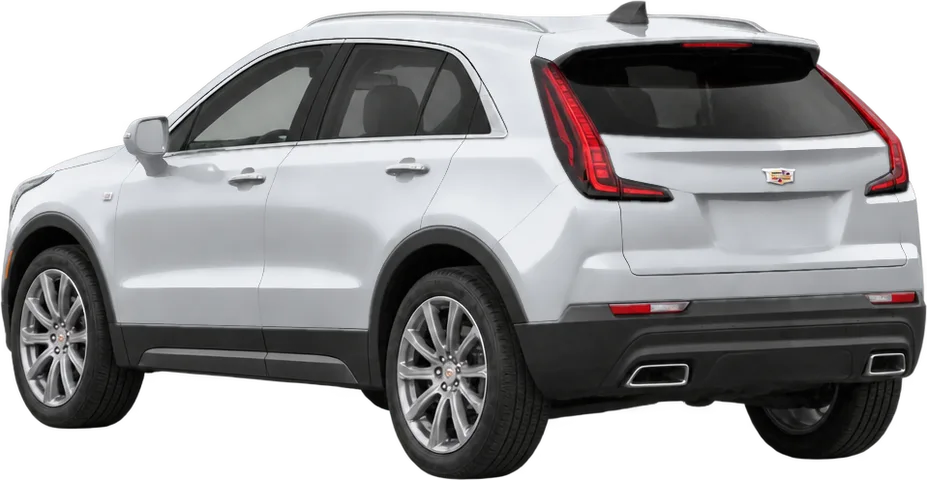

Cadillac XT4 2025 rear three-quarter view

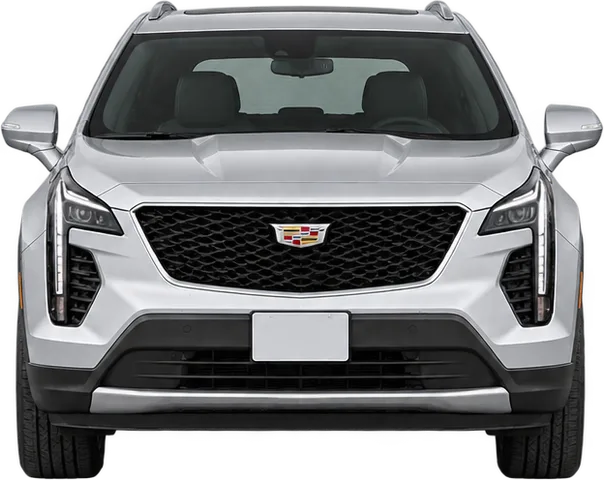

Cadillac XT4 2025 front view

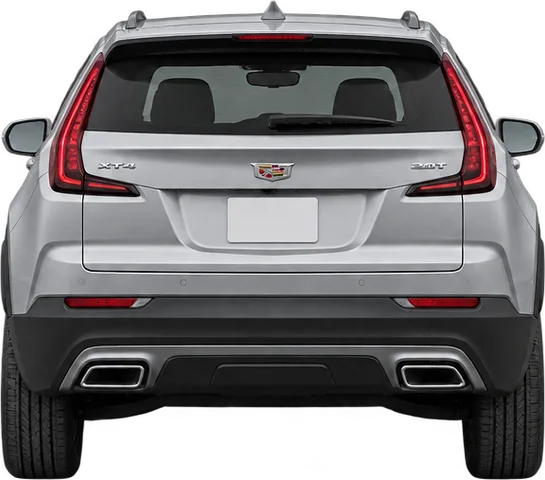

Cadillac XT4 2025 rear view

In a standard 2-car garage (20 ft6.1 m × 20 ft6.1 m)

Yes, it fits

58.9″150 cm to spare lengthwise

Uses the longest trim. Leave about 3 ft0.9 m to walk around the car.

Check your own garage

Fuel and efficiency

Powertrains
Gas
Combined MPG
24–26
Trunk (EPA)
23.0 cu ft651 L

Source: EPA fueleconomy.gov

Parking spaces

  • Standard (9 ft2.7 m × 18 ft5.5 m)Yes, it fits · 34.9″89 cm
  • Compact (8 ft2.4 m × 16 ft4.9 m)Tight fit · 10.9″28 cm
  • Parallel (8 ft2.4 m × 22 ft6.7 m)Yes, it fits · 82.9″211 cm

Typical US sizes; your city’s code may differ.

Length181.1″460 cm
Width76.7″195 cm
Height64.1″163 cm
Wheelbase109.4″278 cm
Ground clearance6.8″17 cm
Seats5
Cargo space22.5 cu ft637 L
Cargo, rear seats folded48.9 cu ft1,385 L
Curb weight3,896 lb1,767 kg
Max towing3,500 lb1,588 kg

Based on 12 trims, model years 2019–2020.
